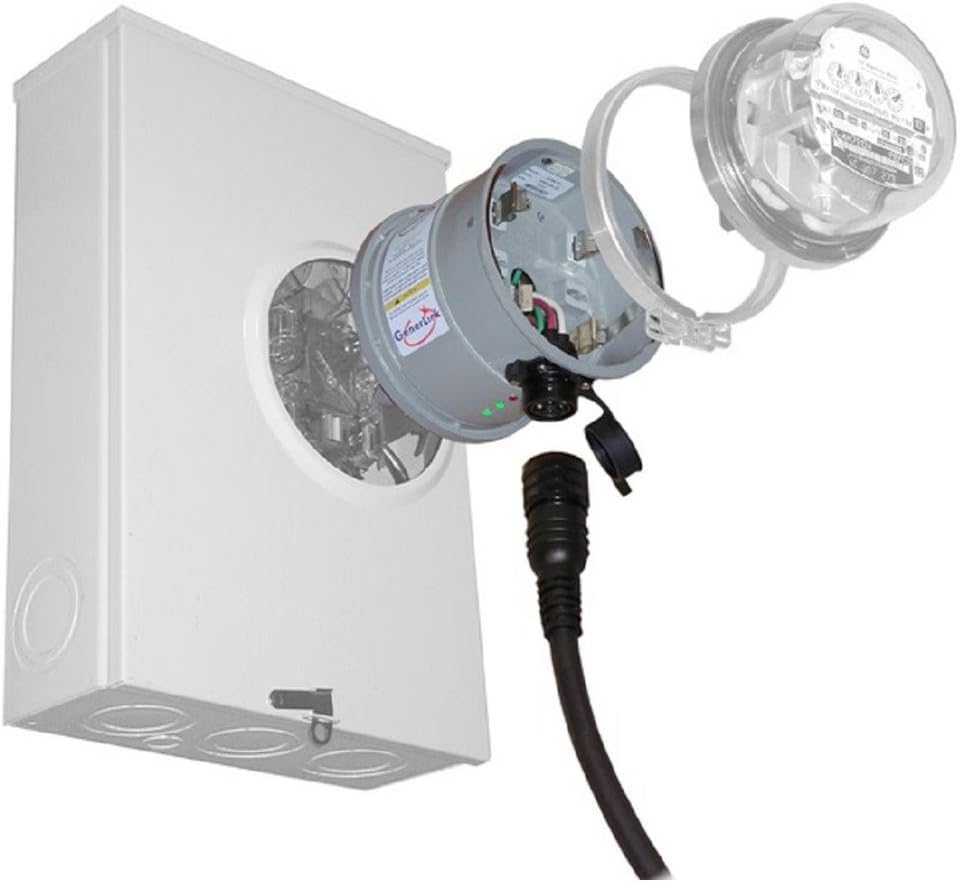

GenerLink™ is a UL-listed, meter-mounted transfer switch that enables you to safely power your home using a portable generator. It installs behind your electric meter without rewiring and prevents dangerous backfeed to the utility grid.
Physical | |
---|---|
Diameter: | 6 ½ in. |
Depth: | 5 ¼ in. |
Weight w/o surge: | 5 ½ lbs |
Weight with surge: | 5 ¾ lbs |
Socket Style: | Ring or Ring-less, 200 Amp, 4 jaw |
Electrical | |
Source Compatibility: | 200 Ampere Service or less |
Withstand Current: | 14,000 Amperes rms symmetrical at .5 pf, 240 Volts, 60 Hz 6000 Amperes for 6 cycles at .7 - .8 pf, 240 Volts, 60 Hz |
Generator Input: | 10kW Continuous¹, 120/240 Volt (MA-24) |
Connection: | Proprietary GenerLok™ QuickConnect Power Cord³ |
Operational | |
Transfer Type: | Break-Before-Make |
Transfer Delay: | 2-3 Seconds |
Life Cycle: | 300,000 Operations |
Temperature Range: | -30°C to 60°C External Ambient |
Features | |
Generator Input Protection: | Generator Input Voltage ≥ 200 Volts Supplemental Overcurrent ≤ 40 A |
Utility Input Protection: | Utility Input Voltage ≥ 180 Volts Over-Temperature Trip ≥ 105°C |
Load Protection: | Integrated Whole-House, Surge Protection Model MA23/24 - S Only Type 1 - 75kA per phase |
Status Indication: | Long-life LED indicators show utility power availability and/or fault presence |
Listings: | UL 1008M - Meter socket transfer switch |

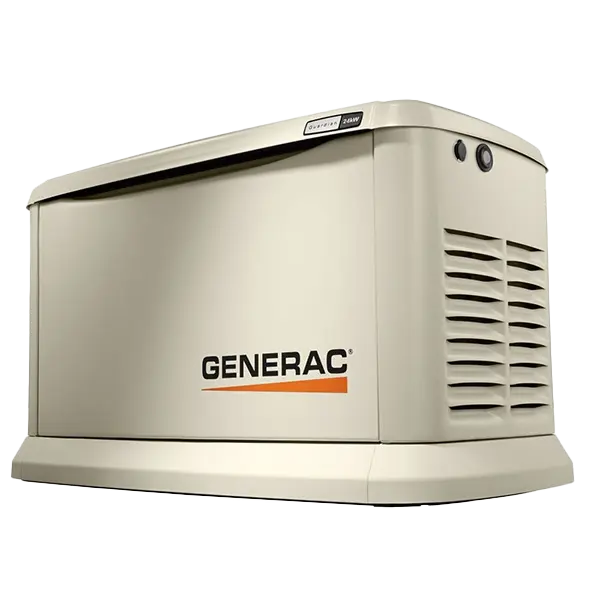

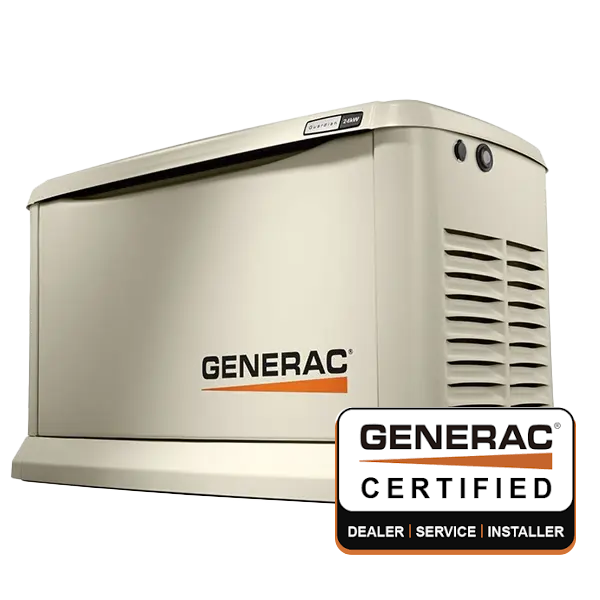

Generac’s Guardian Series offers automatic, reliable backup power by connecting to your home's natural gas or LP supply. With capacities up to 26kW—the largest air-cooled generator available—it ensures whole-home protection during outages.
SPECIFICATIONS (LP/NG) | 10/9 kW | 14/14 kW | 18/17 kW | 22/19.5 kW | 24/21 kW | 26/22.5 kW |
---|---|---|---|---|---|---|
Generator Only Model | 7171 | 7223 | 7226 | 7042 | 7209 | 7290 |
Generator / 100 Amp Select Circuit Switch Model | 7172 | 7224 | - | - | - | - |
Generator / 200 Amp Service Rated Load Shedding Smart Switch Package Model | - | 7225 | 7228 | 7043 | 7210 | 7291 |
Voltage (Single Phase) | 120 / 240 | |||||
Amps @ 240V LPG | 41.7 | 58.3 | 75.0 | 91.7 | 100 | 108.3 |
Amps @ 240V NG | 37.5 | 58.3 | 70.8 | 81.3 | 87.5 | 93.8 |
Engine/Alternator RPM | 3600 / 3600 | |||||
Engine | Generac G-Force | |||||
Engine Displacement | 460cc | 816cc | 816cc | 999cc | 999cc | 999cc |
Fuel Consumption @ 1/2 Load - NG cu. ft/hr | 101 | 195 | 169 | 228* | 203 | 188 |
Fuel Consumption @ Full Load - NG cu. ft/hr | 127 | 256 | 247 | 327* | 306 | 333 |
Fuel Consumption @ 1/2 Load - LPG cu. ft/hr (gal/hr) | 36 (0.97) | 65 (1.81) | 62 (1.70) | 92 (2.53)* | 92 (2.53) | 75 |
Fuel Consumption @ Full Load - LPG cu. ft/hr (gal/hr) | 54 (1.48) | 112 (3.07) | 110 (3.02) | 142 (3.90)* | 142 (3.90) | 132 |
Quiet-Test Mode | Yes | |||||
db(A) at Exercise | 57 | 55 | 57 | 57 | 57 | 57 |
db(A) at Normal Operating Load | 61 | 65 | 65 | 67 | 67 | 67 |
Enclosure | Aluminum | |||||
Enclosure Color | Bisque | |||||
Warranty | 5-Year Limited | |||||
Dimensions - L” x W” x H” in. (mm) | 48 x 25 x 29 (1218 x 638 x 727) | |||||
Weight (lb) | 338 | 385 | 420 | 466* | 445 | 518 |
Mobile Link Wireless Connectivity | Yes |
